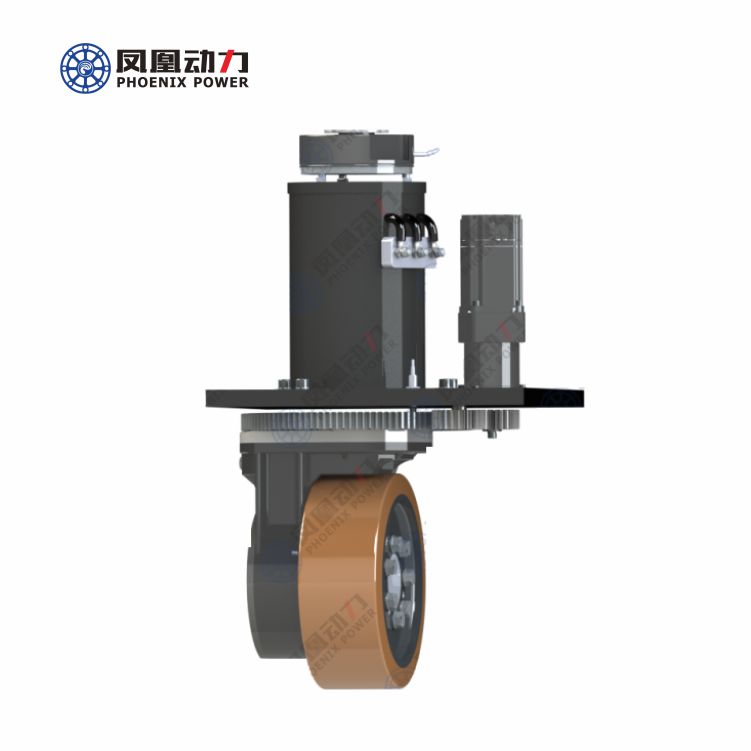

PhoenixPower PV310DS Vertical Steering Wheel Forklift Handling AGV Robot Motor Drive Assembly

A1标准伺服款
A1标准交流款
A2弹簧减震伺服款
A3弹簧减震交流款

凤凰动力250

其他品牌230

立式舵轮PV250DS系列,是凤凰动力推出的一款高性能产品,适用于AGV、电动堆高车/堆垛车、电动托盘车、电动平衡重叉车、电动前移式叉车、电动窄巷道叉车、电动牵引车等装载3000kg以内的各种车型,对比市场上同款230产品,具有功率更大、扭矩更强 、速度更快 、承载更高、越障和爬坡能力更强、回转半径更小的优点,且更具成本优势。

功率更大

扭矩更强

速度更快

负载更高

越障能力更优秀

爬坡更轻松

回转半径更小

更具成本优势

A1标准伺服款配置   型号:PV250DS-A1-020-01

驱动单元
行走电机inagv伺服电机 PVMN13016M3G4-L25-S30-1Z
48V1570W5N.m3000rpm
行走电机IP等级IP64
行走电机自出线长动力2m/制动2m/编码器2m(可配置任意线长)
行走电机动力延长线-
行走电机制动器内置24V12N.m14.4W
行走电机制动器延长线-
行走电机编码器内置增量式2500线
行走电机编码器延长线-
包胶轮聚氨酯254*75mm
驱动轮额定速度112.33m/min
驱动轮速比i=21.3
转向单元
转向电机inagv伺服电机 PVML06004H3H3-M17
48V400W1.27N.m3000rpm
转向电机IP等级IP65/轴端IP54
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-400-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度90°/sec
转向减速机速比i=25
转向机构速比i=8
电子限位-
机械限位-
零位开关
驱动器
行走电机驱动器inagv伺服驱动器 PLD2L-CAN7040B
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 PLD2L-CAN7010B
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载1500kg
单舵轮最大牵引重量3000kg
双舵轮最大牵引重量4500kg
舵轮安装尺寸如图

A1标准伺服款总成图


图文展示
