PhoenixPower PV150DS Series Vertical Steering Wheel

产品能力范围:
Wheel diameter 150mm
Vertical load 400kg
Driving wheel power 200W-400W
Driving wheel torque MAX=65N.m
Driving wheel speed 0-6km/h
Driving wheel speed ratio 20.25
Steering motor power 200W/400W
Configurable motor type All types
A1伺服48V400W

功率更大

扭矩更强

速度更快

负载更高

越障能力更优秀

爬坡更轻松

回转半径更小

更具成本优势

A1标准伺服款配置   型号:PV150DS-A1-001-01

驱动单元
行走电机

inagv伺服电机 PVML06004H3G3-M17

48V400W1.27N.m3000rpm

行走电机IP等级IP65,轴端IP54
行走电机自出线长动力0.5m/制动0.5m/编码器0.5m
行走电机动力延长线PL-MOT-400-*
行走电机制动器内置24VDC1.5N.m7.5W
行走电机制动器延长线PL-BRA-*
行走电机编码器内置多圈绝对值17bit
行走电机编码器延长线PL-ENC-*
包胶轮聚氨酯150*50mm
驱动轮额定速度69.78m/min
驱动轮速比i=20.25
转向单元
转向电机

inagv伺服电机 PVML06002H3H3-M17

48V200W0.64N.m3000rpm

转向电机IP等级IP65,轴端IP54
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-200-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度102.27°/sec
转向减速机速比i=40
转向机构速比i=4.4
电子限位-
机械限位-
零位开关
驱动器
行走电机驱动器inagv伺服驱动器 -
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 -
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载350kg
单舵轮最大牵引重量1000kg
双舵轮最大牵引重量1600kg

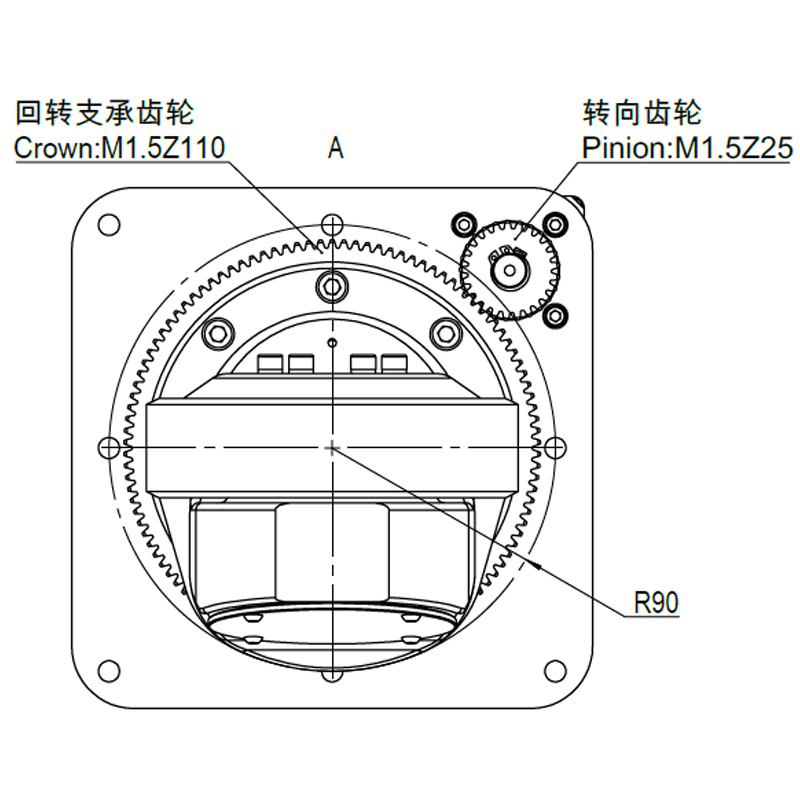

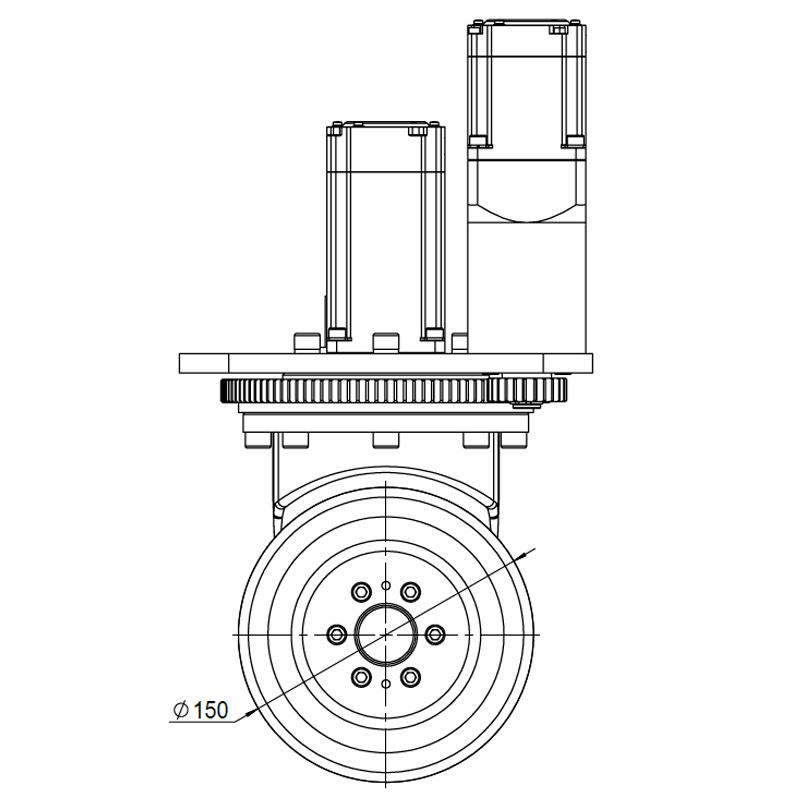

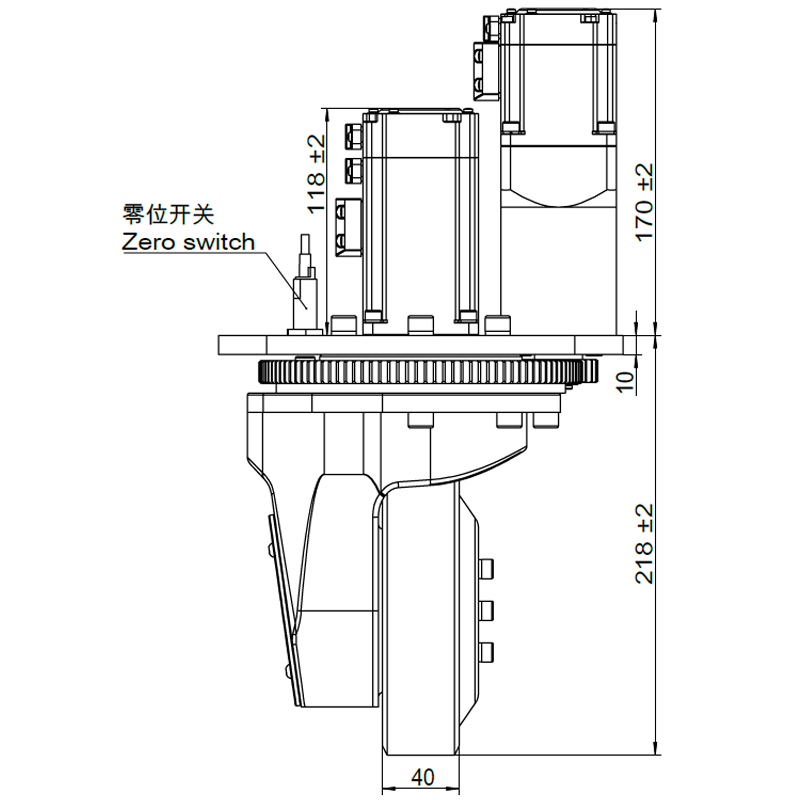

舵轮安装尺寸如图

A1标准伺服款总成图
